Intrim® DIY Wainscoting Kit A

Farmhouse / Country, Victorian / Georgian, French Provincial, Hamptons

DIY Wainscoting Kit A

When you’re looking to create a beautiful wainscoting feature in your home in either a small area or are on a budget, Intrim’s DIY Wainscoting kits are the perfect solution to enhance the look of any room and bring beauty and personality to your home.

Intrim® DIY Wainscoting Kit A is specially crafted in FSC Certified FJ Pine Primed timber, which supports our environment and helps save you time on your project. Winning!

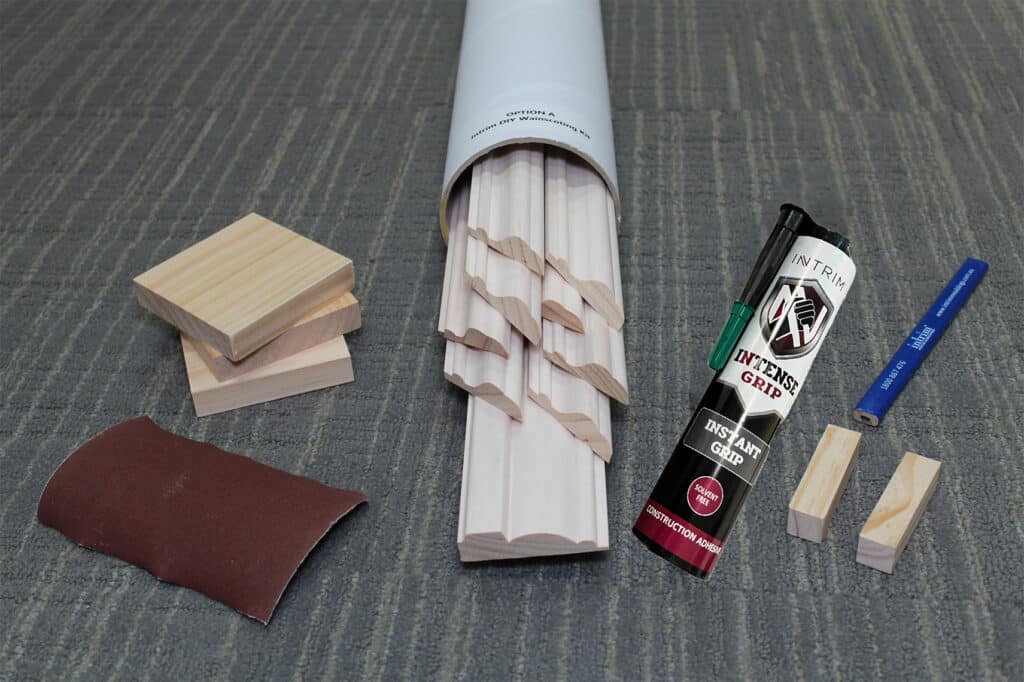

Intrim® DIY Wainscoting Kit A contains:

  • A length of CR22 chair rail (66mm x 18mm thick) at 1800mm long
  • 4 lengths of IN23 inlay mould (42 x 15mm thick) at 720mm
  • 4 lengths of IN23 inlay mould (42 x 15mm thick) 850mm long
  • 3 x 90x90mm spacer blocks to help with your install and measurements. (These little gems will help determine how many 90mm wide spaces there are between the wall panels including wall ends).
  • 2 chair rail corner blocks at 66mm long for use when applying wainscoting around an internal corner
  • 1 tube of high performance adhesive
  • 1 piece of sandpaper
  • A carpenters pencil

This style of moulding is recommended for use in a a large range of interior styles such as Hamptons, Colonial and Edwardian.

So if you thought a beautiful home was never in your reach, our easy to install DIY kits are one way Intrim are helping every Australian have access to creating an interior they dreamed of.

To find out how to install and work out how many kits you need, please see our DIY WAINSCOTING INFORMATION page.

How many kits will I need?

To work out how many kits you need, measure the overall length of wall you want to add wainscoting to, and use the panel chart below to determine how many kits are required.

Length of Wall Number of 1.8m Kits Required Number of Wall Panels (“Frames”) per section of Wall Number of 90mm Corner Marking Spacers Required
600 to 950mm 1 1 panel 2
951 to 1800mm 1 2 panels 3
1801 to 2670mm 2 3 panels 4
2671 to 3600mm 2 4 panels 5
3601 to 4390mm 3 5 panels 6
4391 to 5400mm 3 6 panels 7
5401 to 6110mm 4 7 panels 8
6111 to 7200mm 4 8 panels 9

Available in:

  • 42mm wide x 15mm thick x 5400mm length
  • 42mm wide x 18mm thick x 5400mm length
  • 66mm wide x 15mm thick x 5400mm length
  • 66mm wide x 18mm thick x 5400mm length
  • FJ Pine Primed
Materials & finishes

Complete this form to access the price list as a quick guide for budgeting or you can request a Free quote.

Frequently Asked Questions

What do I get in the DIY Kit?

The DIY packs includes lengths of IN23 inlay mould and CR22 chair rail, carpenters pencil, corner marking spacers, chair rail blocks, glue and sandpaper. In additional to the product and installation tools in each pack you will need high quality mitre box and saw, caulking gun and tape measure.

What is a DIY Kit?

Our DIY Kits include the instructions and tools needed to install wainscoting. Making it fast, simple and easy to DIY wainscoting in the comfort of your own home.

Can you choose what designs go into the kits?

No. Our DIY Kits contain the profiles IN23 inlay mould and CR22 chair rail. These cannot be changed. These profiles work well for 18mm wide architraves as well.

Is Wainscoting expensive?

Depending on the method used wainscoting can be expensive. Traditionally it would be installed using a method called ‘raised panel’ wainscoting, where boards (usually MDF sheets) and battens are installed on the walls to create depth by projecting from the wall. The inlay mould is then installed around the inside lip of these raised board panels. This will give you a traditional Hamptons look and will be beautiful, but it also adds additional cost. This method requires more material and it is much more labour intensive. So how can you combat this? The alternative method of installation is the direct wall application, where for want of a better explanation, you ‘stick’ or install the inlay mould in the ‘frames’ directly to your wall. Usually, these are nailed on, but we also have DIY wainscoting kits so you can install them yourself (saving even more cash) by simply sticking them on the wall.

How do I know how many DIY kits I will need?

Each kit covers 1.8 metres.

Who can install wainscoting?

With Intrim’s DIY Wainscoting Kit, covering your interior walls with wainscoting panels is easy to do yourself! Contact us today to find out more and hear some handy tips and tricks on what you’ll need for DIY wainscoting and how you can use our wainscoting kit or choose and install your own mouldings, to achieve the look you’re after. If you’d rather have someone else install wainscoting on your walls, we have a list of recommended installers who are experts at installing wainscoting.
