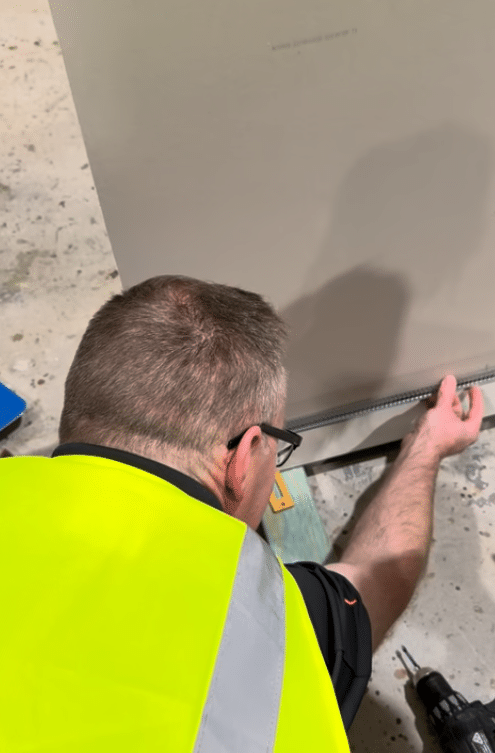

6th August 2026 Three approaches are commonly used to achieve the shadowline effect: the P50 stopping angle, the L-bead, and the Intrim Shadowline® system. How each gets there, and how each holds up once the paint is dry, is what separates a premium shadowline detail from the rest of the market chasing the same look. What is the P50 shadowline stopping angle method? P50 is the term used for a galvanised metal stopping angle. It uses a bead fixed to the plasterboard, with a 10mm recess built in to form the recognisable shadow gap at the base of the wall. P50 shadowline is the most traditional method for a shadow gap skirting detail in Australian residential and commercial construction, and the one most plasterers already know how to use. The P50 sequence is straightforward on paper. The bead is fixed to the plasterboard and the joint is finished with at least two passes of setting compound, sanded between coats. A backing block (noggin) behind the plasterboard supports the skirting-to-bead junction, and the skirting board sits below, butting against the underside of the bead. The shadow gap itself reads in the space between the top of the skirting and the plasterboard face above it. That shadow detail is built on-site, which means its quality depends on the same three variables every time: wall flatness, bead alignment, and how carefully each plasterer sets and sands the compound. Small variations add up across a long wall run. Add the seasonal movement that comes with timber-framed construction, and the base of the bead becomes a common place for a crack to form once a building has been through its first year. What is the Intrim Shadowline system? The Intrim Shadowline® skirting series takes the opposite approach: the 10mm shadow groove is machined into the timber profile at the factory, not created on site. It arrives ready to install, groove and all. Rather than constructing the shadow gap around a metal bead, with Intrim’s flush system, you fix the skirting and door jamb to the framing first, then set the plasterboard against them. The joint between the two is finished with setting compound and reinforcing tape (Intrim recommends Fiba Fuze tape with full drying time between coats). No backing blocks and no additional plaster passes are needed to form the groove. The difference shows up the moment you look along a wall. A machined groove holds the same depth and width down every length of board, regardless of who plastered it or how flat the wall is. That precision is the distinction between a high-end shadow gap detail and one that only looks right in the renders. The Shadowline SK800 series offers a coordinated flush system, incorporating a patented skirting profile with a matching DJ800 door jamb. A fire-rated option – the SK800FR – is manufactured in FR MDF for Class 2-9 builds where the Building Code of Australia requires fire-compliant skirting. What about L-bead? L-bead is a plastic or metal strip designed to cap an unfinished edge. It is fixed to the plasterboard edge, with the skirting butting against its rebated profile to create the recess. It has slightly better crack resistance at the base than the P50 stopping angle because the plastic absorbs more movement at the skirting-wall junction. The trade-off is that cracking can appear at the top of the bead instead – where the plasterboard terminates – particularly as the building settles. Shadowline skirting method comparison at a glance The table below sets out the differences that matter most when specifying a shadow gap skirting, from groove consistency through to fire compliance and design coherence. Shadowline skirting method comparison: Intrim Shadowline SK800, P50 stopping angle and L-bead. Intrim Shadowline SK800 P50 stopping angle L-bead How the shadow gap is created Machined into the timber profile at the factory Built on site using a metal bead, setting compound, and backing blocks Built on site using a plastic or metal bead set to the plasterboard edge Groove consistency Factory-controlled; the same depth and width down every length Variable; depends on wall flatness, bead alignment, and plasterer precision Variable; depends on bead setting precision Backing blocks required No Yes – needed to support the skirting-to-bead junction Depends on installation method Installation speed Fastest – around 30% less time than P50 methods Slowest – extra steps for backing blocks, bead installation and multiple plaster passes Slower than SK800; comparable to P50 Crack risk over time Low when installed with Fiba Fuze tape and correct drying schedule Higher at the base of the bead, particularly in timber-framed buildings with seasonal movement Lower at the base than P50; cracking risk shifts to the top of the bead Supply length 5.4m pre-primed lengths Typically 3000mm Typically 3000mm Material Pre-primed MDF or FJ pine, factory-machined Galvanised steel bead plus separate timber skirting board PVC or light gauge steel bead plus separate timber skirting board Suitable project types Residential, multi-res, commercial, aged care, hospitality – including fire-rated environments Residential and commercial where finish tolerance and budget allow Residential and commercial; moderate improvement on P50 crack resistance Design coherence Complete system: skirting, door jamb, and architrave from one product family Skirting and door jamb require separate specification Skirting and door jamb require separate specification Why Intrim Shadowline suits every project type The Intrim Shadowline system isn’t a one-size specification. It suits the full spread of residential, multi-residential, and commercial builds – the real question is which profile and configuration fits the project in front of you. Modern Australian homes In a new build or a full renovation working toward a genuinely contemporary feel, the Intrim Shadowline system works perfectly across large-format tile, polished concrete, and engineered timber floors. Its minimalist detailing benefits smaller rooms too: dropping the visual bulk of a standard skirting board can make a tight apartment living area or a dim internal hallway feel noticeably more open. High-end developments Luxury residential developments and boutique hospitality projects, from architect-designed apartment towers to boutique hotels and resorts, showcase the understated beauty of shadowline. Buyers and guests register the flush line even without knowing what’s different about the room, and it signals the same attention to detail running through the rest of a high-specification fitout. Paired with the DJ800 door jamb, that line runs uninterrupted from the corridor into every suite or apartment. Office and retail spaces Office fitouts, showrooms, and retail spaces put a different kind of pressure on the same detail: frequent refits, constant foot traffic, and a shopfront or reception area that has to look sharp from day one and stay that way. The same continuity that suits a home carries a brand’s standard through a showroom floor or a retail tenancy just as well, and it sits naturally alongside the concealed lighting and joinery lines most commercial fitouts already use. Multi-residential and commercial Class 2-9 builds For apartments, aged care, hotels, and hospitals – any Class 2-9 build under the National Construction Code – the SK800FR answers the design brief and the fire-compliance requirement in one product. It achieves an FRL of -/60/60 in FR MDF, tested to AS 1530.4-2014 by CSIRO. No other integrated shadowline skirting system offers the same. Choose Intrim Shadowline for your next project Whether you’re working on a luxury home or a contemporary commercial build, the Intrim team can help you choose the right profile and plan the installation sequence for your floor type and build stage. Book a Design Consult Harvey Quinsey Harvey Quinsey is the Sales & Marketing Manager at Intrim Mouldings. He works directly with architects, interior designers, and builders on specification decisions across a wide range of residential and commercial projects, and has an intimate understanding of how material choice, profile selection, and finish interact to define an interior. Harvey brings that practical, inside-industry perspective to designers who want to specify with confidence.
