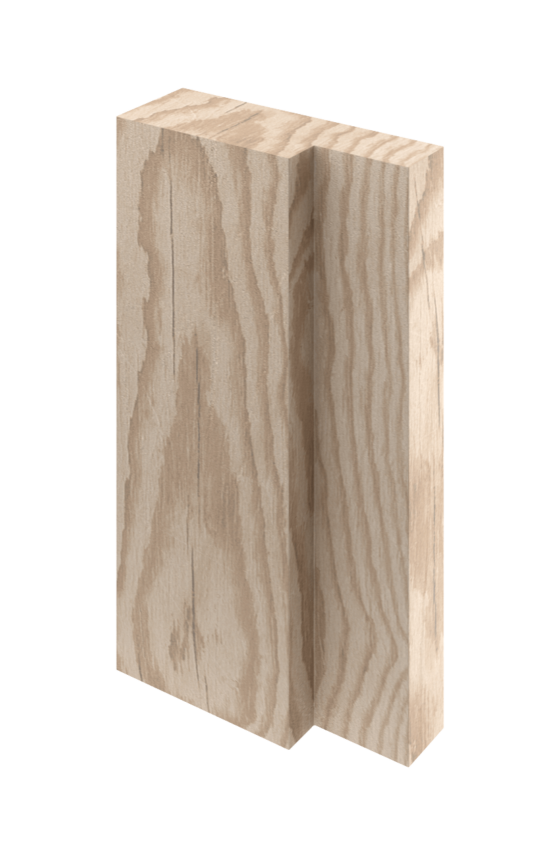

Intrim® Custom Single Rebate Door Jamb

DJSingle

Intrim Custom Single Rebate Door Jambs are made to fit at the top and sides of a door or window frame and are available in your choice of FJ Pine or FJ Pine Primed.

Intrim’s door jambs are supplied in 5.4 metre lengths and are available in standard sizes of 90mm, 115mm, 135mm, 185mm, 230mm, 285mm wide and 30mm or 42mm thick.

Custom sizes can be manufactured on request. DOWNLOAD a custom order form and return it to us for a free quote.

Available in:

  • 66mm wide x 30mm thick x 5400mm length
  • 66mm wide x 42mm thick x 5400mm length
  • 90mm wide x 30mm thick x 5400mm length
  • 90mm wide x 42mm thick x 5400mm length
  • 115mm wide x 30mm thick x 5400mm length
  • 115mm wide x 42mm thick x 5400mm length
  • 135mm wide x 30mm thick x 5400mm length
  • 135mm wide x 42mm thick x 5400mm length
  • 185mm wide x 30mm thick x 5400mm length
  • 185mm wide x 42mm thick x 5400mm length
  • 230mm wide x 30mm thick x 5400mm length
  • 230mm wide x 42mm thick x 5400mm length
  • 285mm wide x 30mm thick x 5400mm length
  • 285mm wide x 42mm thick x 5400mm length
  • FJ Pine
  • FJ Pine Primed
Materials & finishes

Complete this form to access the price list as a quick guide for budgeting or you can request a Free quote.

Frequently Asked Questions

Is the Intrim 800 Series Door Jamb available in different section sizes to suit different width wall framing and plasterboard thicknesses?

Yes. We are able to manufacture these to suit any application.

At what stage of my project is the Intrim 800 Series Shadowline door jamb and skirting installed?

They are both installed prior to the plasterboard installation. Door jambs are assembled by forming mitre joints where the head joins the stiles as opposed to the traditional half joint. The door jamb is then installed and packed plumb and level. It is critical that the jamb material is centrally located over the framing material and runs parallel with the framing material so that the PVC (PLTB 630) plaster stop bead fits neatly against the door jamb material. Skirting is installed to fit tightly between the door jambs. The plasterboard sheets are then installed tight against the back face of the 800 Series door jamb and on top of 800 Series skirting. The PVC (PLTB 630) stop bead is then installed to surround the door jambs. All joints between the bottom edge of plasterboard sheeting and top edge of shadowline skirting are to be plaster set and must also include reinforcing joint paper tape when setting. Also plaster set all PVC stop beads surrounding the door jambs.

Shadowline® Door Jambs Enquiry Forms

When making an enquiry about Shadowline we will ask you for some key dimensions and information. See the forms below to capture all the measurement details required.

Do we provide a Shadowline architrave?

No, we don’t, because the DJ800 Shadowline Door Jamb that works with the SK800 Shadowline skirting board system acts as both a doorjamb and Shadowline architrave on both sides. This is also another way to save on costs.

Useful Guides

Guide

Style your Home Modern

Modern styling in a property can encompass much more than what many people envisage of just concrete, iron and clean...

View Guide
