Wall Panelling Guide: Styles, Materials, Installation & More

In this comprehensive guide to wall panelling, we’ll help you decode the most popular styles, compare common materials used, consider cost ranges, understand what installation involves, and how decorative wall panels hold up over time.

Types of Wall Panelling

Six wall panelling styles cover almost every brief we see:

Wainscoting

Wainscoting is built from a series of raised boxes, squares or rectangles formed with inlay mouldings, running from the skirting board to around a third or half wall height, with plain wall above. It divides a wall visually and protects the lower third from furniture and traffic.

Board and Batten

Vertical timber battens sit over a flat base panel, usually to a third or half wall height, finishing in a capping rail. For a softer shadow line than the standard chamfered edge, concave or half round battens do the same job with a scalloped or rounded profile instead.

VJ and Tongue-and-Groove Lining

Timber lining boards use a tongue-and-groove system: run them vertically and crown them with a chair rail for a beadboard wainscoting look, or lay them horizontally for a shiplap look. VJ (short for V-jointed) has a fine, textural grain that suits any style, depending on the finish.

Flat Panel and Shadow Gap

A minimalist approach to panelling: flush timber or MDF panels separated by a thin recessed shadow line instead of a moulded edge. It is the profile of choice for a contemporary or Japandi-leaning interior, where a decorative capping would feel too heavy.

Fluted and Reeded Panelling

Vertical grooves, evenly spaced, catch light and shadow across the wall as the day moves. It has become the signature texture of boutique hospitality fitouts, and it works well on a residential feature wall or a kitchen island end panel.

Wall Panelling Materials Compared: Timber, Engineered Timber and MDF

The material changes the cost, the finish and where a panel can go.

Solid timber species like American oak give the deepest grain and the strongest presence, but they can be the most expensive and most sensitive to humidity.

FJ (finger-jointed) pine is the workhorse of the range: paint-grade, stable, and more affordable than solid hardwood, which is why it dominates board and batten and VJ lining jobs. It can also be used in wet areas and alfrescos because of its superior moisture resistance.

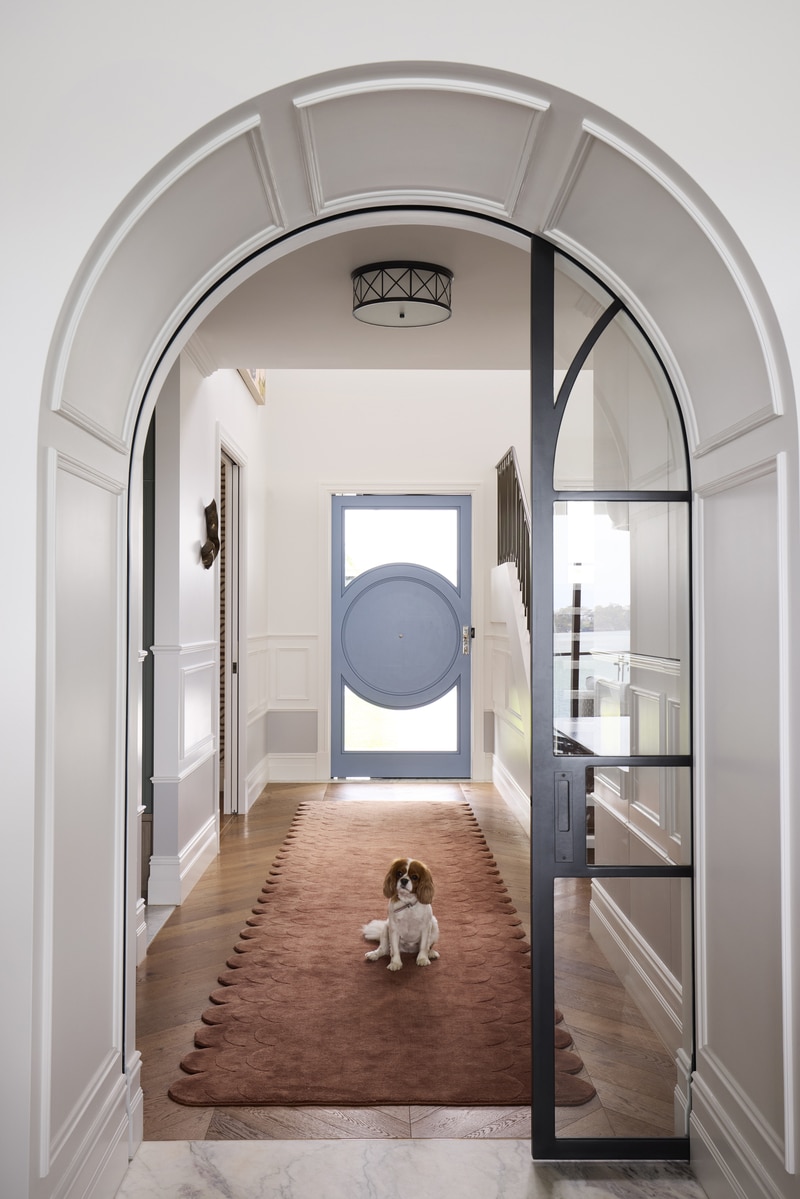

MDF is a great option for small surfaces that aren’t in high-impact areas and can be kerfed to allow some bend, which makes it ideal for decorating arched doorway openings.

Flexible polyurethane earns its place on curved walls and bulkheads, where timber profiles cannot bend to the curvature required.

How Much Does Wall Panelling Cost in Australia?

Costs vary by material, profile complexity and site access, so treat the ranges below as a guide rather than a quote.

• Board and batten typically runs $180 to $260 per linear metre installed.
• VJ or tongue-and-groove lining runs from $150 to $220 per linear metre installed.
• MDF flat panel or shadow gap runs approx. $130 to $190 per linear metre installed.
• Solid timber fluted panelling typically runs $220 to $350 per linear metre installed, reflecting the material and the joinery time.

Labour, not material, usually accounts for the larger share of the total when a wall has internal corners, skirting integration or services to work around.

Here at Intrim Mouldings, we don’t install panelling, but our Intrim-approved installer network will help you find a trusted tradesperson in your area, so both the finish and the workmanship warranty are in safe hands.

How to Install a Wall Panel

A typical wall panelling installation job moves through four stages:

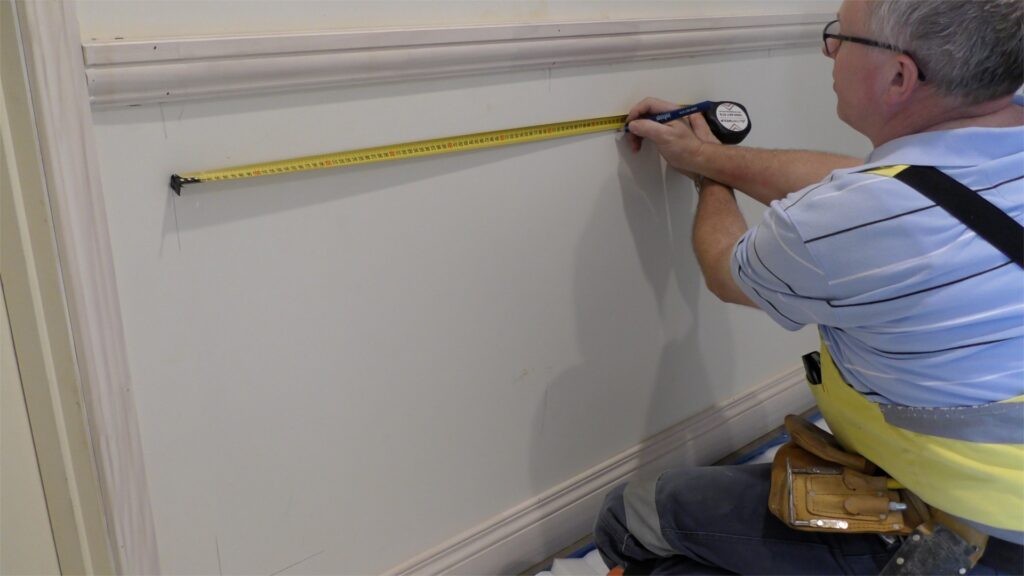

1. Measure and set-out: The “take off” stage establishes the batten or panel rhythm against the room’s actual dimensions, not a standard module, since an even final gap on either side of a doorway or window matters more to the finished look than any single measurement.
2. Substrate preparation: This means a flat, sound wall. Panelling reveals every dip and bump in a wall behind it far more visibly than paint does.
3. Fixing: Either adhesive, mechanical fixing, or both is used, depending on the wall type and panel weight.
4. Finishing: This stage covers caulking perimeter edges, filling and painting or sealing, and it is where most of the visible quality difference between a good and an average install shows up.

However, most of this work is best left to a professional.

Wall Panel Care and Maintenance

Painted timber and MDF panelling needs little beyond a soft, dry or barely damp cloth for dusting and an occasional wipe with a mild detergent solution for marks. Avoid abrasive cleaners, which dull a painted finish over time.

Check joins yearly, particularly in a bathroom or a coastal home, and touch up any hairline gaps before moisture gets behind the panel.

Solid timber finished in oil or wax benefits from a light re-coat every few years to keep its colour even, rather than waiting for visible fading.

Wall Panels​ vs the Alternatives

Wallpaper offers more pattern variety at a lower material cost, but it shows wear at corners and high-traffic edges sooner than panelling does, and it cannot be sanded back and repainted the way timber and MDF can.

Tiles suit a genuinely wet zone like a shower recess, and panelling suits almost everywhere else in a bathroom that needs texture without full waterproofing.

A painted flat wall costs the least upfront and offers none of the panelling’s depth, shadow or acoustic softening.

Panelling earns its premium in rooms where a wall is doing real design work (an entry, a feature wall, or a formal living space) rather than in every room of a build.

Want Wall Panels That Wow? Choose Intrim

Every one of Intrim’s high-quality wall panelling profiles is produced to the highest quality standards.

Once you have settled on a style, explore our full range of wall panelling and ceiling panelling products online.
